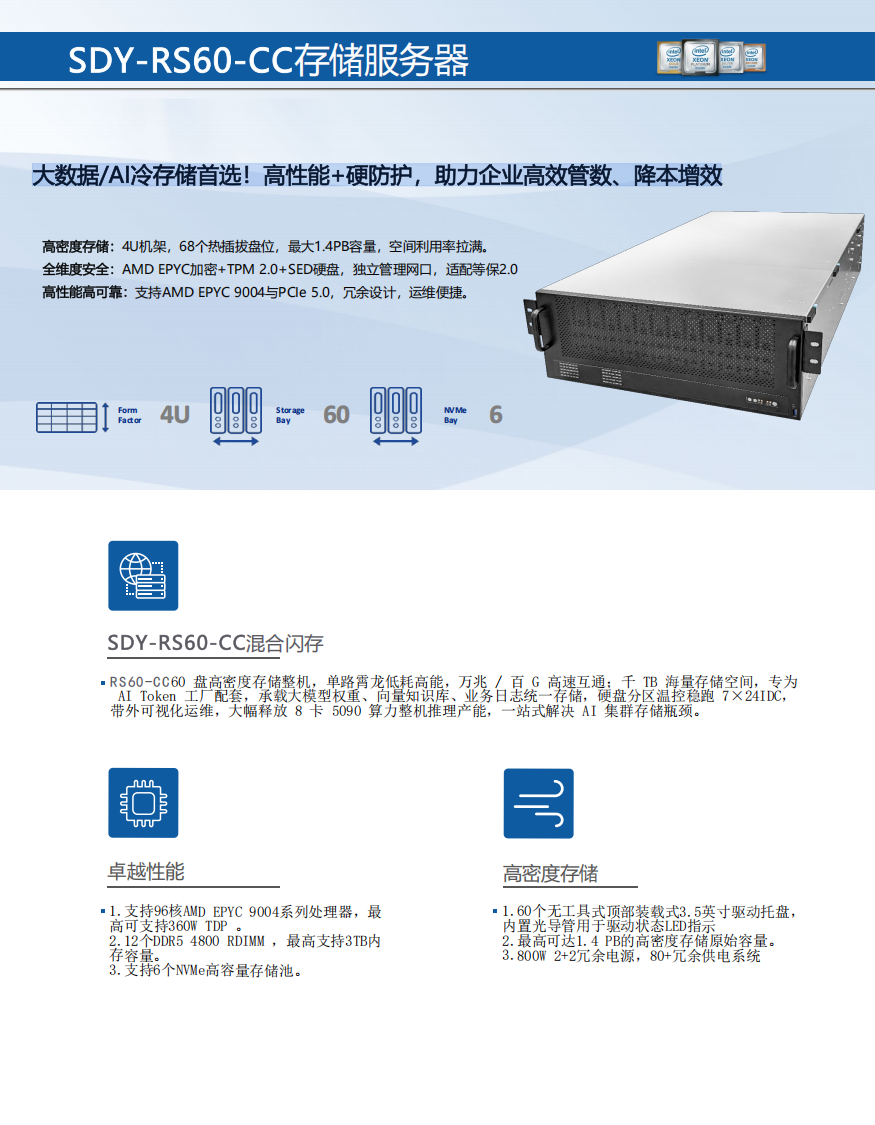

Size 176mm (高)×434mm (宽)×878.5mm (深)

Hard Disk Support Drive Bays:3.5" Slot x 60 (SATA / SAS);2.5" Slot x 6 (NVMe);2.5" Slot x 2 (SATA);3.5“ 2.5" SATA, SAS, NL-SAS, SED HDD;2.5" NVMe, SED SSD ;2.5" SATA , SED SSD Maximum Internal Raw Capacity:1.4PB (calculate 24TB HDD)

Back Panel }

Back Panel 最高 96 核

Back Panel 最高 192线程

Back Panel DDR5 4800 RDIMM/3DS RDIMM;12 (12-channel, 1-DIMM per Channel);Maximum up to 3TB

CPU Support Type AMD EPYC™ 9004/9005 系列

Number Of Memory Slots 12

Hard Disk Interface Characteristics Drive Bays:3.5" Slot x 60 (SATA / SAS);2.5" Slot x 6 (NVMe);2.5" Slot x 2 (SATA);3.5“ 2.5" SATA, SAS, NL-SAS, SED HDD;2.5" NVMe, SED SSD ;2.5" SATA , SED SSD Maximum Internal Raw Capacity:1.4PB (calculate 24TB HDD)

Operating Temperature 工作温度：10ºC - 30ºC(无直接光照情况下)；扩展工作温度：5ºC - 40ºC(限定性配置满足)；运输存储温度：-40ºC - 70ºC

Storage Temperature And Humidity 工作湿度：20% - 90%(非凝结)； 存储湿度：5% - 95%(非凝结)。

Operating System Support Windows Server 2019、2022、2025；Ubuntu Server 20.04 / 22.04 / 24.04；CentOS Stream 8 / 9等

PCI Power Supply 800 W 2+2 redundant (80 PLUS Platinum)

Chipset AMD EPYC™ 9004 系列集成芯片组

Network Interface 2 × 25GbE SFP28 端口 (Broadcom BCM57414)；1 × RJ-45 千兆管理 LAN 端口
